Merging Feeds

Merging active and future Feed Versions

For a given feed source/agency, it is possible to merge two feed versions that represent different service periods during the calendar year, e.g., a feed that contains summer service and a feed that contains fall service. This feature provides a convenient way for agencies to publish a feed version that spans a longer service period without interrupting downstream services (e.g., trip planners) that rely on that data day in and day out.

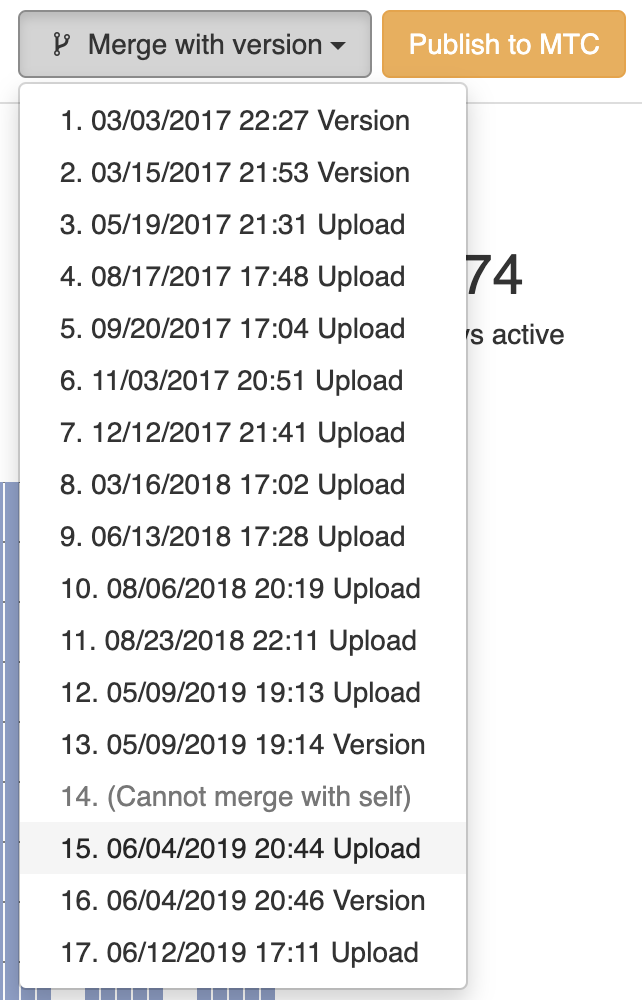

To begin a feed merge, navigate to one of the feed versions to be merged (it does not matter whether this is the current or future version). Next, click the 'Merge with version' dropdown button and select the version with which to merge.

![merge feed versions](../img/merge-feeds-button.png)

Merge rules

We call "active" and "future" GTFS feeds the feeds with the earliest and latest start dates, respectively. This is in reference to the typical use case where, to avoid disruptions to trip planning software, a feed with service that starts in the future needs to be merged with a feed with active service that has not expired yet.

There are a set of rules that govern the requirements for input feed versions and how different tables are merged in the output feed version:

  1. Merging will be based on route_short_name in the current and future datasets. All matching route_short_names between the datasets shall be considered same route. Any route_short_name in active data not present in the future will be appended to the future routes file.
  2. Future feed_info.txt file should get priority over active feed file when difference is identified.
  3. When a difference is found in agency.txt between the active and future feeds, the future agency.txt file data should be used. If agency_id is not specified (e.g. because a feed only has one agency), one is automatically generated for the merged feed.

  4. Stops will be merged on stop_code or stop_id if stop_code is missing. However, some restrictions apply on when missing stop_code values are permitted:

    (i) Stops with location_type greater than 0 (i.e., anything but 0 or empty) are permitted to have empty stop_codes (even if there are other stops in the feed that have stop_code values). This is because these location_types represent special entries that are either stations, entrances/exits, or generic nodes (e.g., for pathways.txt). The merge will happen on stop_code if provided, or fallback on stop_id.

    (ii) For regular stops (location_type = 0 or empty), all or none of the stops must contain stop_codes. Otherwise, the merge feeds job will be failed.

  5. Trips will be merged as follows:

    (i) All trip_ids from one version that are not in the other version will be added to the merged feed.

    (ii) Reusing trip_ids between the feed versions is permitted, however the trip signature must all be identical in both feeds. Two trips have the same signature if all their arrival_time, departure_time, stop_id, and stop_sequence fields in stop_times.txt are exactly the same in both feeds. If a time, stop, or stop sequence is changed on a trip, the trip will have a different signature.

    If a single trip signature changes, the merge process will fail and report the trip_ids with mismatching signatures.

  6. Calendar entries are added with some modifications.

    (i) For trips with trip_id in the active feed and not in the future feed, the corresponding service entry in calendar.txt in the active feed is kept and renamed. The reference in the trip entry is updated accordingly. If that service ends after the future feed start date, it is set to end one day before the future feed start date.

    (ii) For trips with the same signature and with trip_id found in both feeds, a new entry in calendar.txt is created, starting from the active feed’s start date and ending at future feed’s end date. These trips will be assigned under the new record in calendar.txt.

    (iii) For trips with trip_id only in the future feed, the service entry in calendar.txt from the future feed is added.

    (iv) Entries from the active feed's calendar_dates and calendar_attributes that are after the start of the future feed, or entries that become unreferenced are removed.

  7. New shape_ids in the future datasets should be appended in the merged feed.

  8. Merging fare_attributes will be based on fare_id in the current and future datasets. All matching fare_ids between the datasets shall be considered same fare. Any fare_id in active data not present in the future will be appended to the future fare_attributes file.
  9. All fare rules from the future dataset will be included. Any identical fare rules from the current dataset will be discarded. Any fare rules unique to the current dataset will be appended to the future file.
  10. All transfers.txt entries with unique stop pairs (from - to) from both the future and current datasets will be included in the merged file. Entries with duplicate stop pairs from the current dataset will be discarded.
  11. All GTFS+ files should be merged based on how the associated base GTFS file is merged. For example, directions for routes that are not in the future routes.txt file should be appended to the future directions.txt file in the merged feed.

Merge Feed Versions Result

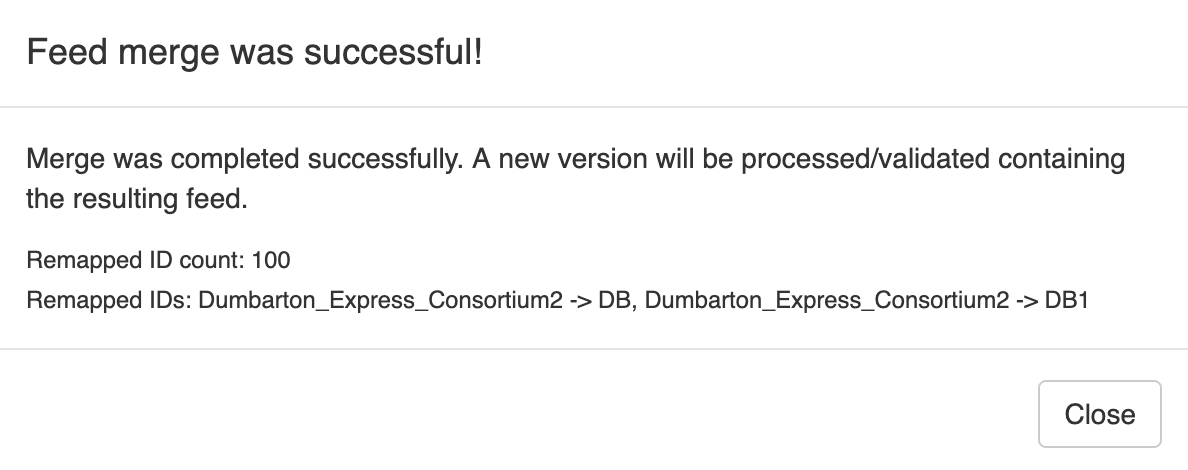

Once the merge feeds task has been completed, a notification window will appear describing the results of the merge process. If the feeds did not meet the rules for input datasets, the merge will fail and you will see a message describing the reason for failure and any offending records (e.g., duplicate trip_ids shared between the feeds). Otherwise, you will see a success message, with a list of any IDs that were modified for the output feeds (note: the input feeds will never be modified). Upon success, a new Feed Version will be created as the latest version for the feed source.

![merge feed versions result](../img/merge-feeds-result.png)

Merging a Project's Feed Versions

Another feed merge type supported by the application is to merge the latest version for all feed sources in a project. This process only supports a basic "dumb" merge, where all unique identifiers from the input feeds will be feed-scoped. In other words, a stop_id value of 12345 in an AC Transit input feed, will appear as AC_12345 in the output feed (this prefix may differ in practice). Also, the regional merge currently makes no attempt to merge stop entities from different feeds based on location.

A regional merge can be performed by clicking Actions > Merge all on the project view (list of feed sources). This may take some time depending on the number and size of feeds in the project and is not recommended for projects with a large number of very large feeds.
